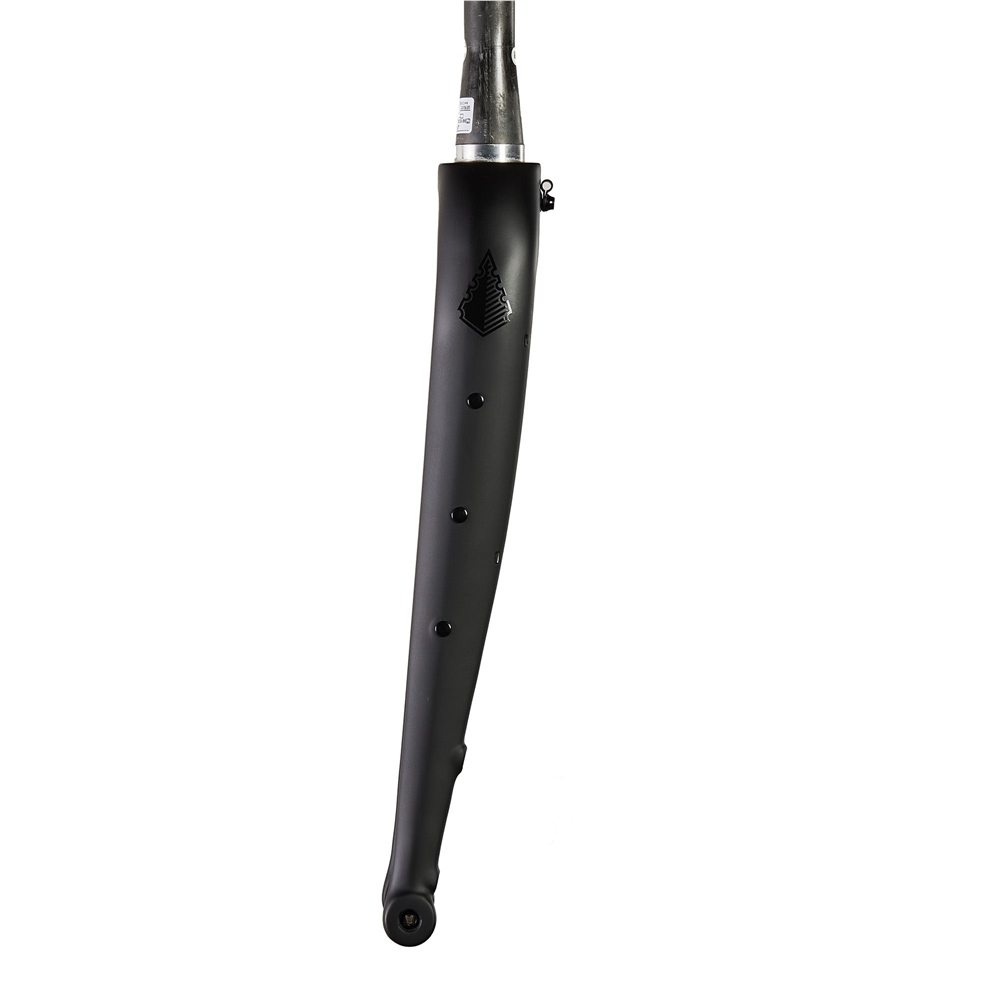

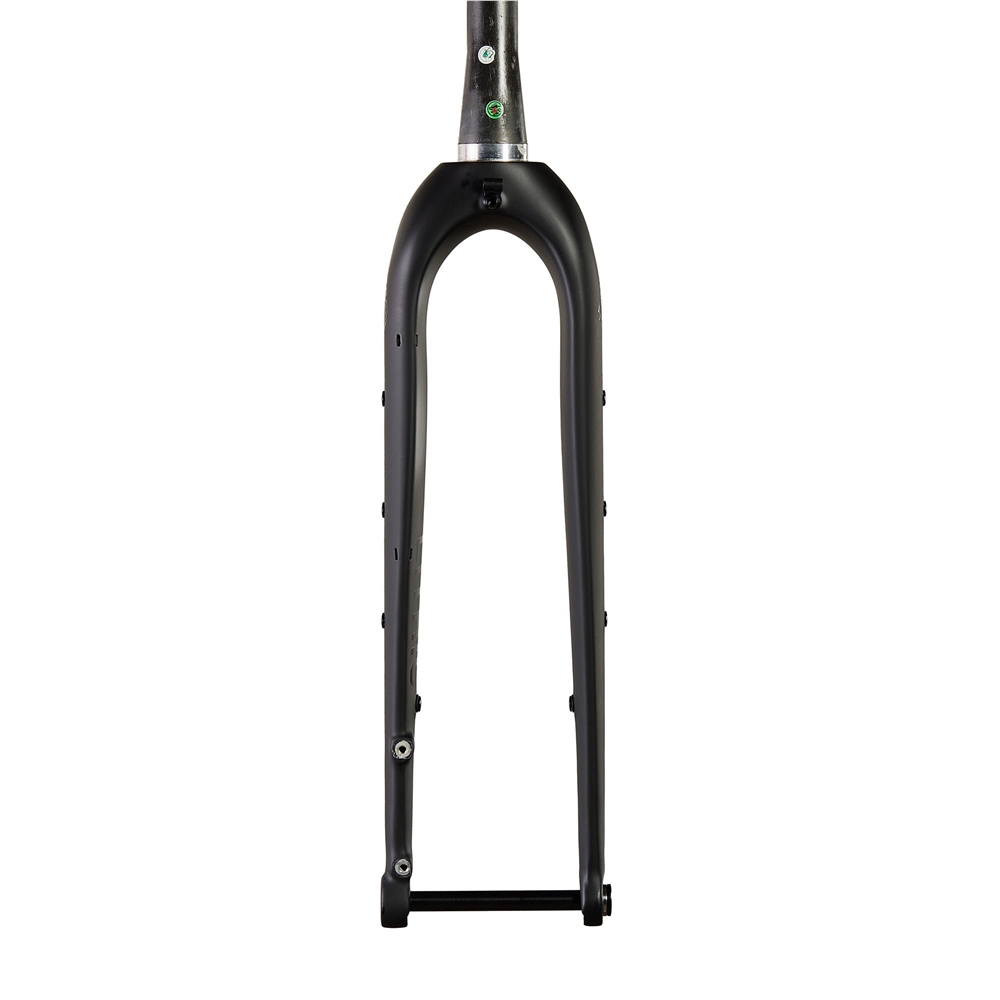

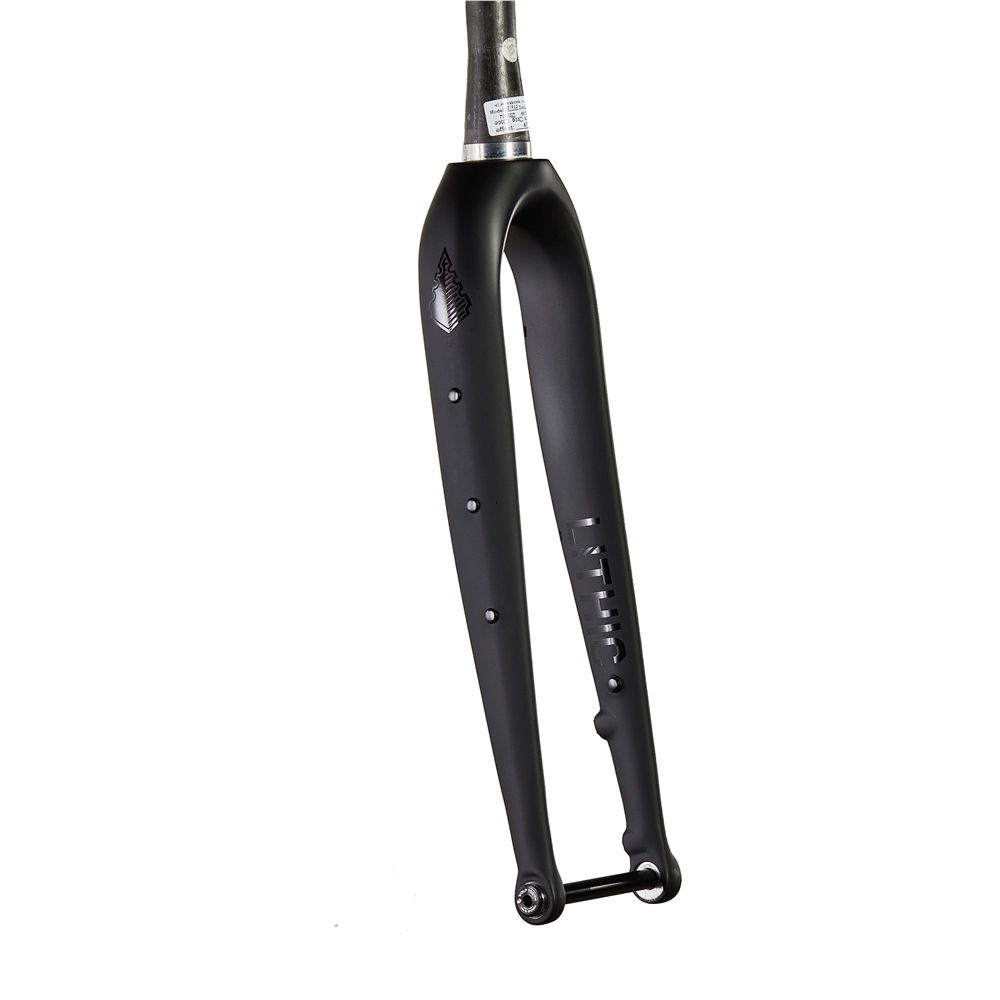

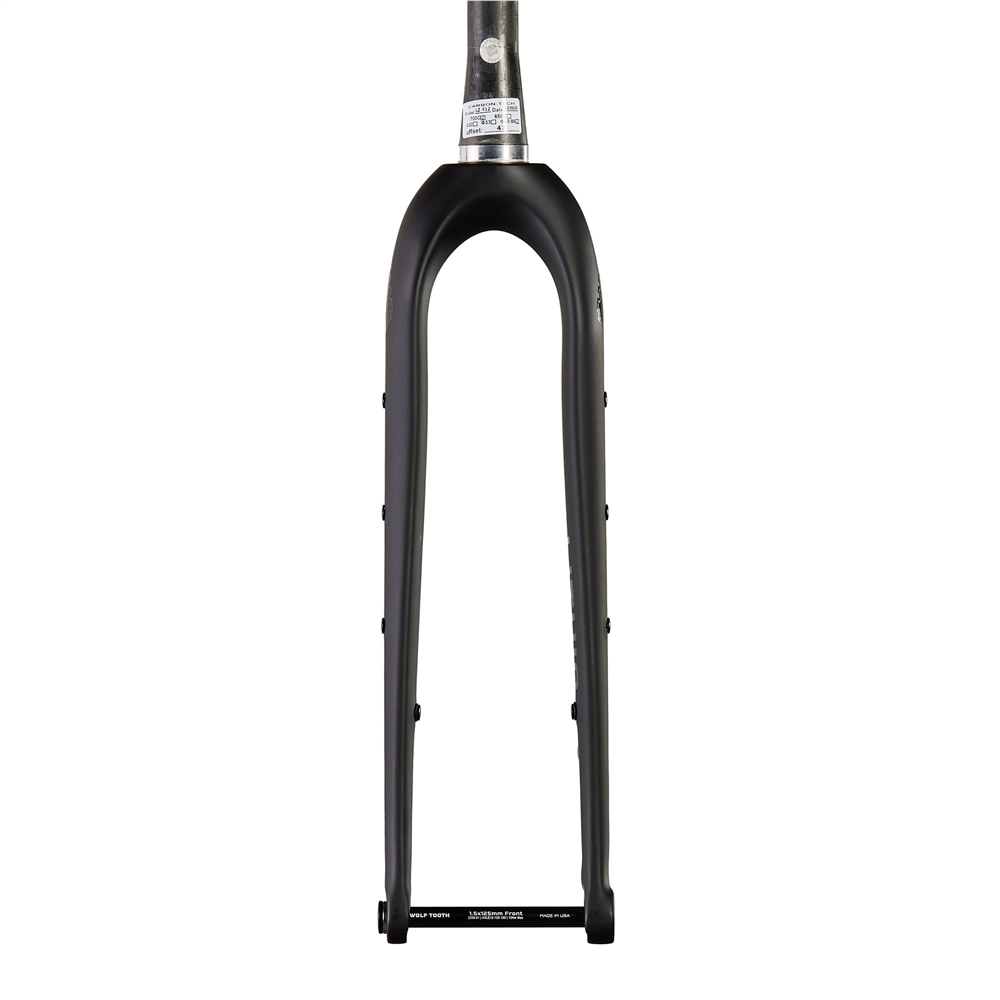

Lithic Carbon Gravel Fork
- Spread the cost over 6, 12, 24 or 36 months
- 0% APR Finance available on 6, 12, 24 months for orders over £250
- 0% APR Finance available on 36 months for orders over £1500
- Pay as little as 10% deposit
Lithic Carbon Forks are engineered by Wolf Tooth Components in Minnesota, USA. Designed for any rider and for a variety of bikes, our fork range includes a highly adjustable rigid carbon mountain fork, a suspension corrected carbon gravel fork, and a lightweight fat bike fork. Each Lithic fork is a lightweight, high-performance option for riding, racing, bikepacking, and any adventure that takes you off the beaten track. Each fork features convenient external cable routing, 3-pack mounts on each fork blade for cargo carrying capability, and a machined-in-house Wolf Tooth front axle.
The Lithic Gravel Fork is a carbon option for gravel and all-road bikes. This fork has matte black paint with options for gloss black and gloss white decals. The axle-to-crown is 420mm, which makes it compatible with suspension-corrected frames. Clearance for 29” x 2.1” tires and three-pack mounts equip the fork for bikepacking, while the 515g uncut weight makes it a strong selection for gravel racing.
Specs:
Material: Carbon
Weight (including axle): 515g
Steerer Tube Length: 320mm
Steerer Tube Taper: 1 1/8" - 1 1/2"
Rake/Offset: 47mm
Axle To Crown: 420mm
Suspension Correction: 30-50mm
Brake Mount: Flat Mount
Hub Spacing: 12x100mm
Max Rotor Size: 160mm
Max Tire Clearance: 29x2.1" (54-622)
Max Rider Weight: 250 lbs
Max Load (3 pack mounts): 2.5kg [5.5 lbs] per side
Axle Torque: 12Nm
Compression plug torque: 8Nm
Stem spacers above stem: 10mm MAX
Stem spacers below stem: 40mm MAX
Stem steerer tube clamp torque: 6Nm MAX
Warranty: 2 years
Included with fork:
- Wolf Tooth 12mm thru axle
- Compression plug
- Three M5 mounts on each side for carrying bottle cages or gear
- Hidden fender mount/brake cable clip
