ZoomWolf Tooth Components

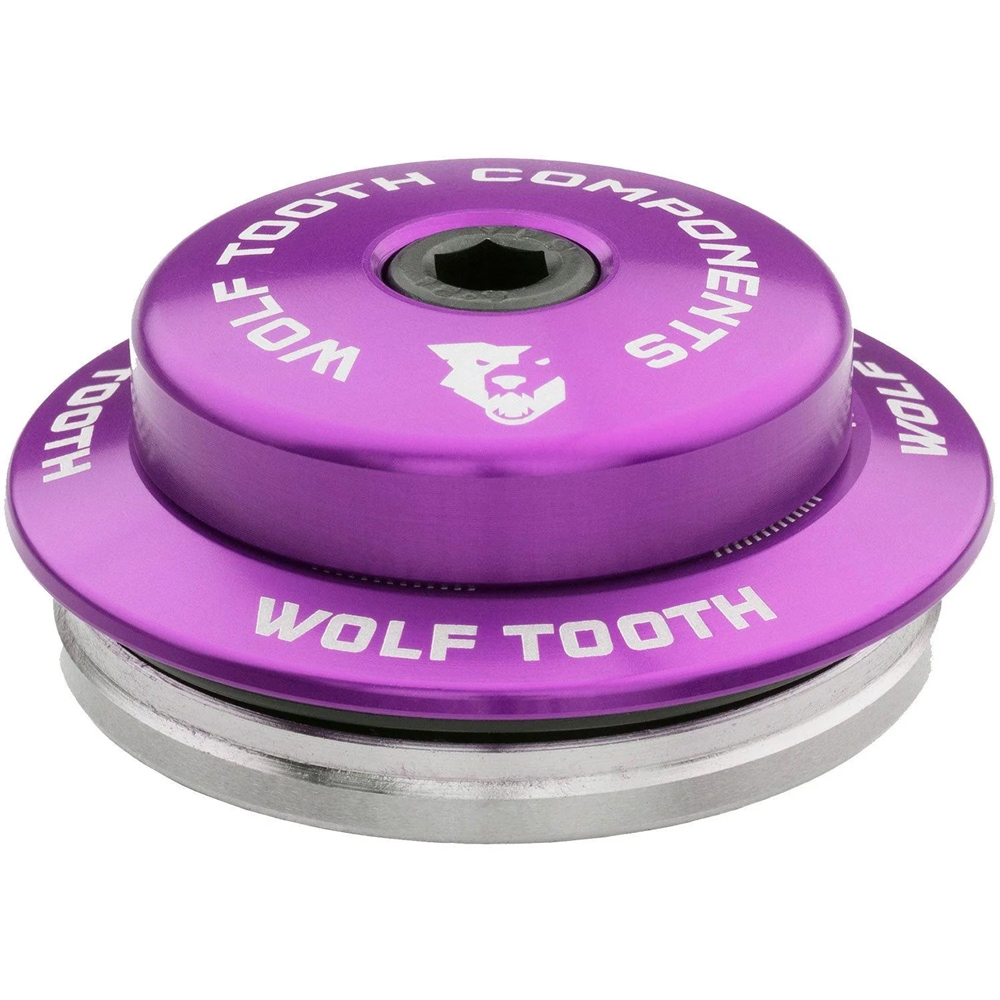

Premium IS42 Upper Integrated Headset For Specialized (3mm Stack)
Wolf Tooth headsets are machined here in our Minnesota shop with aircraft-grade 6061-T6 aluminum. They are designed to be lightweight, strong, and durable. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. This has a stack height of 3mm and is available in a variety of colors to match other Wolf Tooth anodized color options. These IS headsets are made exclusively for Specialized frames with molded-in internal bearing cups. Like all Wolf Tooth Premium Headsets with Enduro stainless steel bearings, the Premium IS Headset for Specialized has a lifetime warranty.
Compatibility:
- Any Specialized bike that uses an IS (Integrated Standard) headset with 42mm upper bearing diameter.
- Uppers and lowers sold separately.
- Enduro stainless steel sealed bearings included on both the upper and lower.
- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately). (Never use a star nut on a carbon steerer tube).
- Some bikes, like the Stumpjumper EVO, have an adjustable headset that resembles a ZS headset where an upper cup is pressed into the frame. Our bearing will fit into that cup and our top cap will fit neatly on top.
Known Compatible Specialized Bike Models:
- Aluminum Mountain Bikes (except pre-2017 Chisel HT aluminum)
- Camber Carbon | 2014
- Chisel Alloy HT (Smartweld HT) | 2017-2021
- Enduro 29 Carbon | 2014
- Enduro Carbon | 2017, 2020
- Epic Carbon | 2014
- Epic FSR | 2021
- Epic FSR Carbon | 2018
- Epic HT | 2017, 2020
- Fatboy Carbon | 2015
- Fuse Carbon | 2017
- Stumpjumper | 2021
- Stumpjumper Carbon | 2019
- Stumpjumper EVO | 2021
- Stumpjumper FSR Carbon | 2016
Upper assembly features:
- Ultralight Stem Cap with 5mm Integrated Spacer plus an aluminum bolt and a star nut.
- One 3mm stack height top cover option.
- O-ring seal prevents water intrusion around steerer tube.
- Custom-molded upper lip seal provides additional protection for upper bearing.
- IS Headset for Specialized
Tech Specs:
- Weight: 3mm • 43g
- Material: 6061 aluminum
- Stem Cap Bolt Torque Spec: 2-3 Nm with light grease on threads only
